Premix unit
Premix unit
orCall +49 (0) 8161-48333
Description

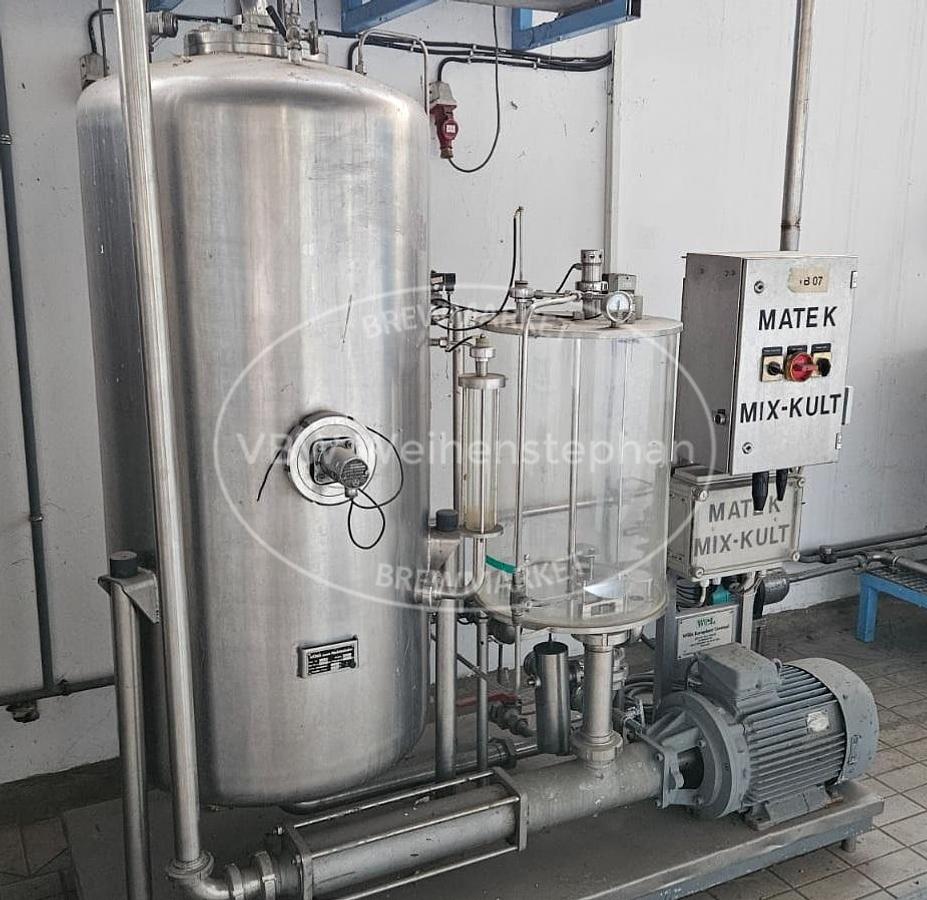

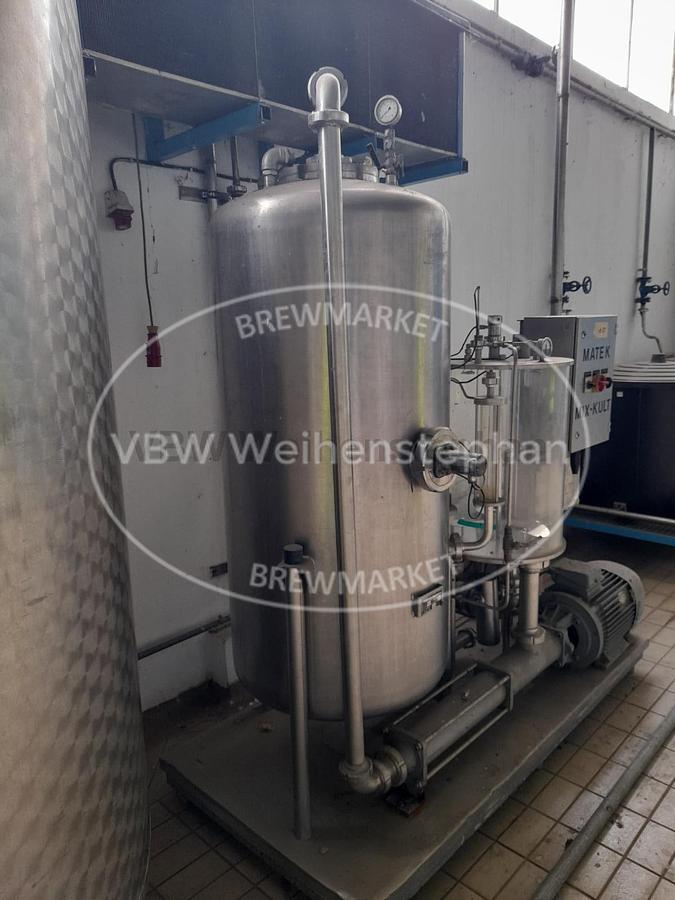

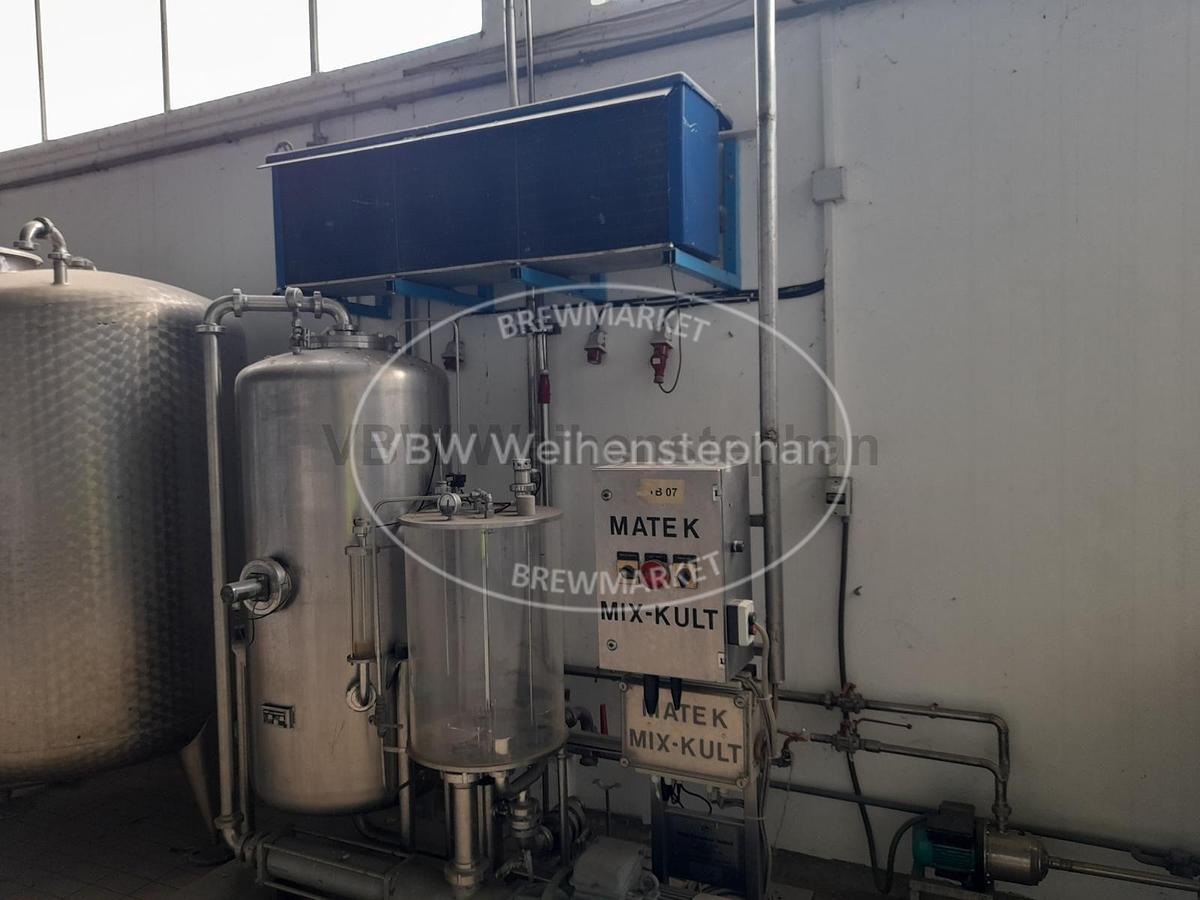

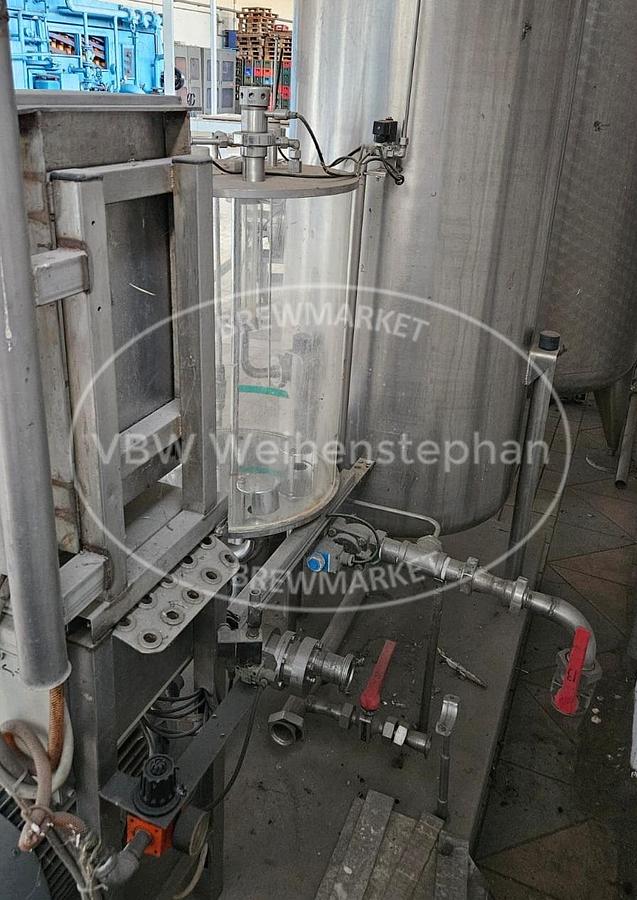

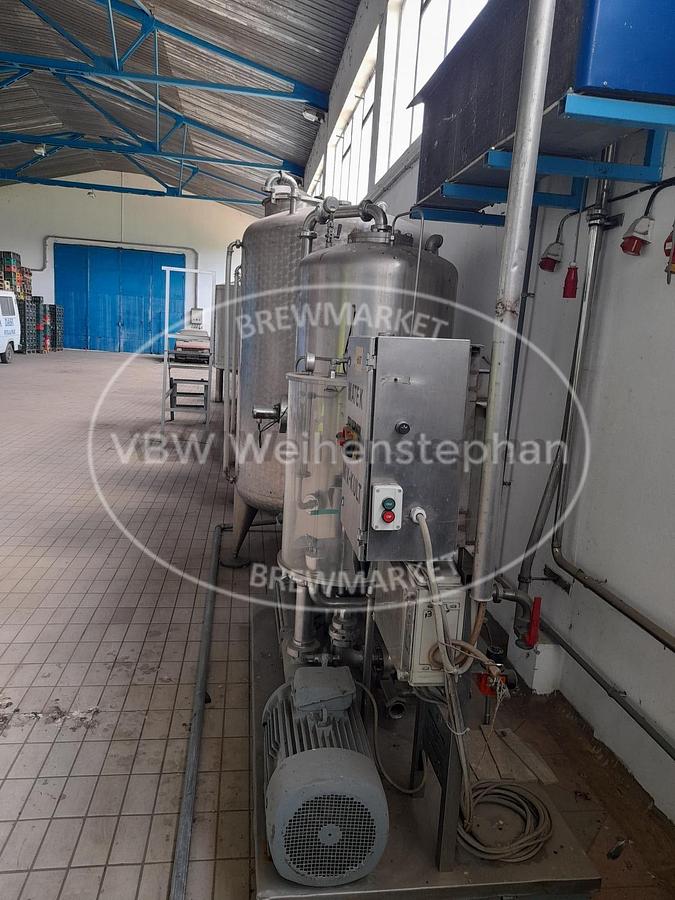

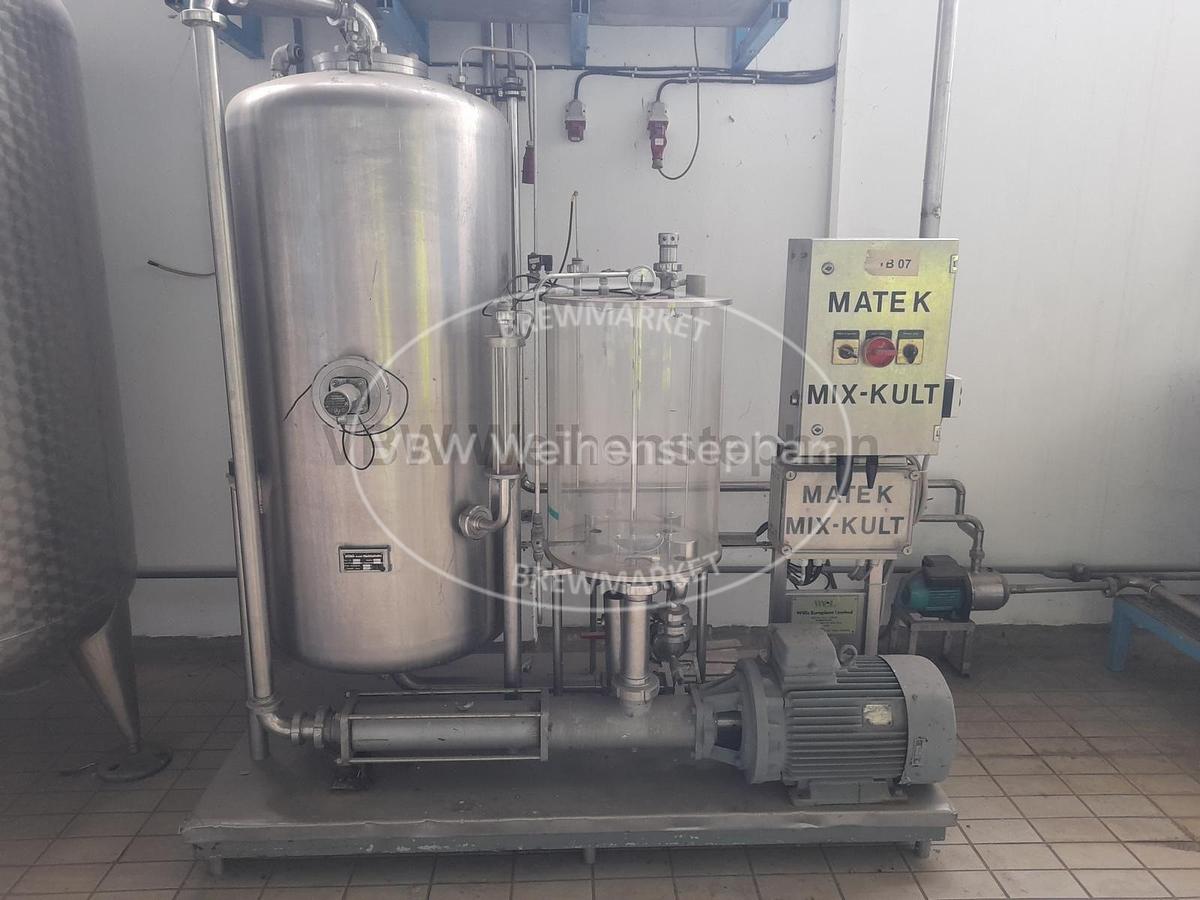

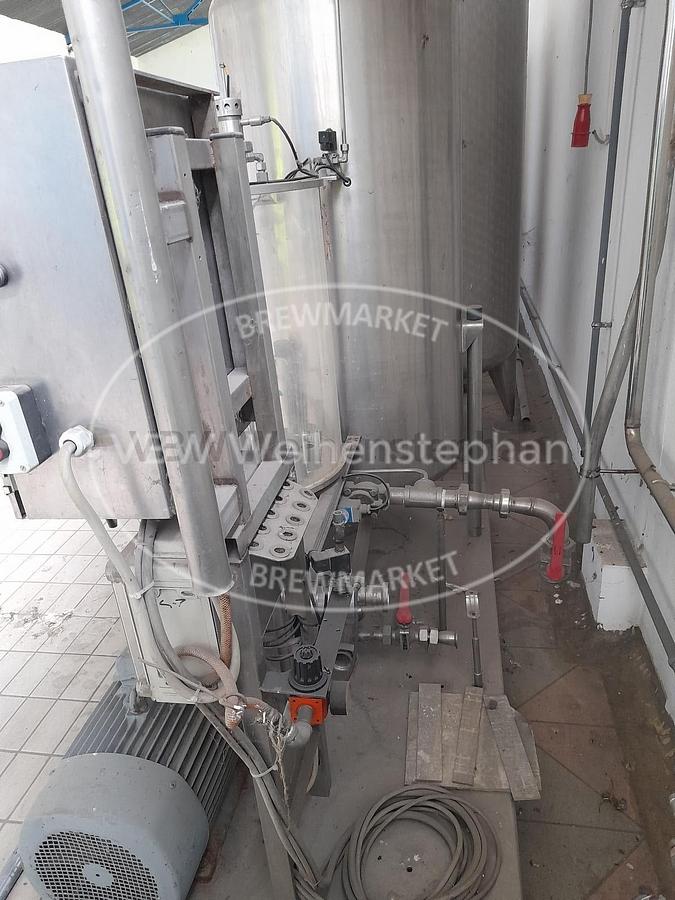

Matek Mix-Kult System for mixing ready-made syrup with water or mixing several components.
The system is mounted on a base frame. The individual units are easily accessible and can be observed as they work.

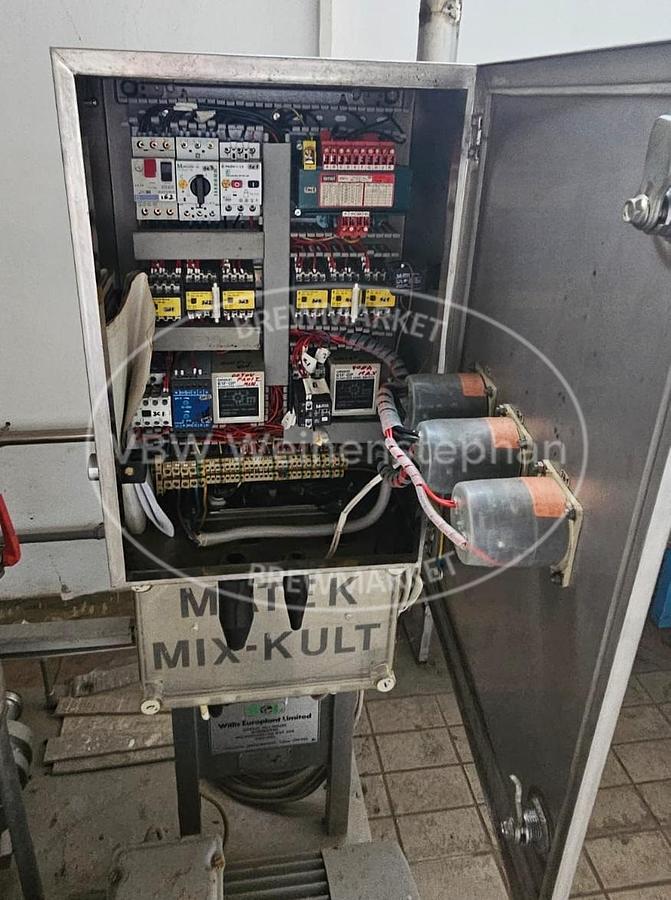

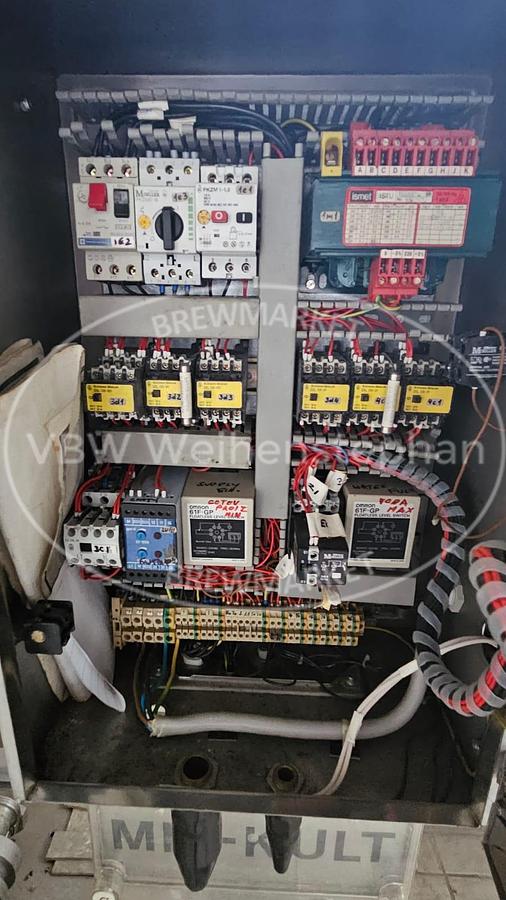

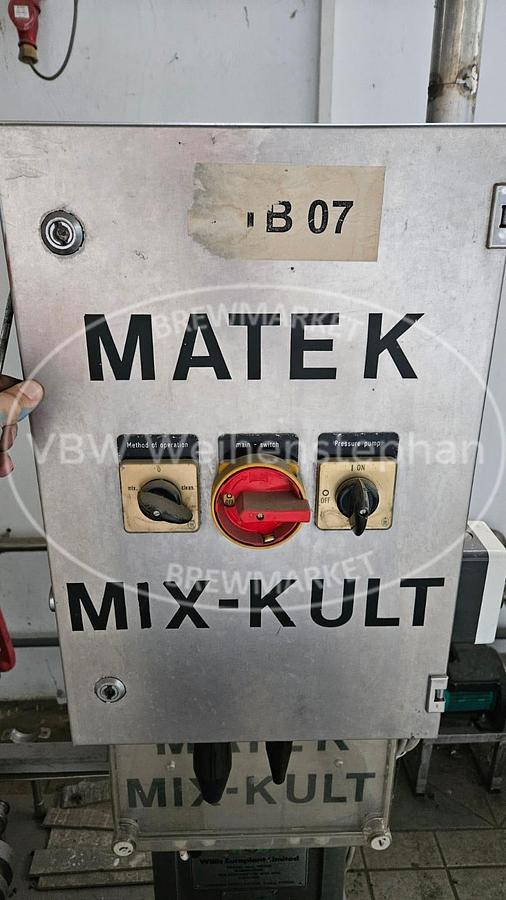

All necessary fittings, control and display devices as well as the control cabinet are installed.
The mixing plant is fully automatic. Syrup and water are dosed in a predetermined ratio, mixed evenly, deaerated and impregnated. The finished beverage is stored in the beverage tank, from which it is then optionally piped to the filler via a pressure booster pump.
Specifications
Manufacturer | Wüma Maschinenbau GmbH |
Year | 1988 |
Condition | Used |
Stock Number | 207057QK |
Additional title | Inline mixing unit |
Capacity | 80 hl/h |
Operating pressure | 10 bar |
Volume | 555 l |
Power | 10 kW |
Water | 2,5 atm |
Compressed air | 5 atm |
Length | 1900 mm |
Width | 900 mm |
Height | 2300 mm |
Weight | 1000 kg |
Material | Stainless steel |
Base construction | Frame |
Features | Mixing and dosing vessel; beverage tank; Mohno-pump; |
