CIP station
![Used CIP station](https://i.machineryhost.com/d4c2e4a3297fe25a71d030b67eb83bfc/14f17948f7d2ffd48d000b3089b7d5a8/large-watermarked-208721MW_1.jpg)
CIP station
orCall +49 (0) 8161-48333
Description

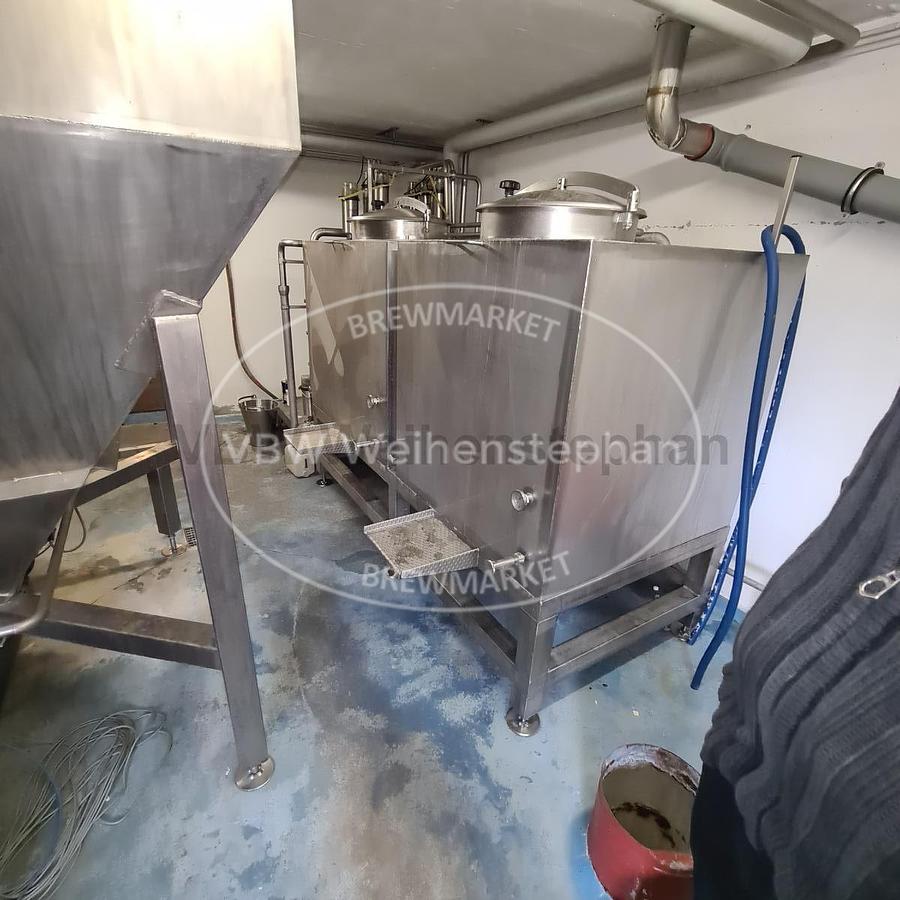

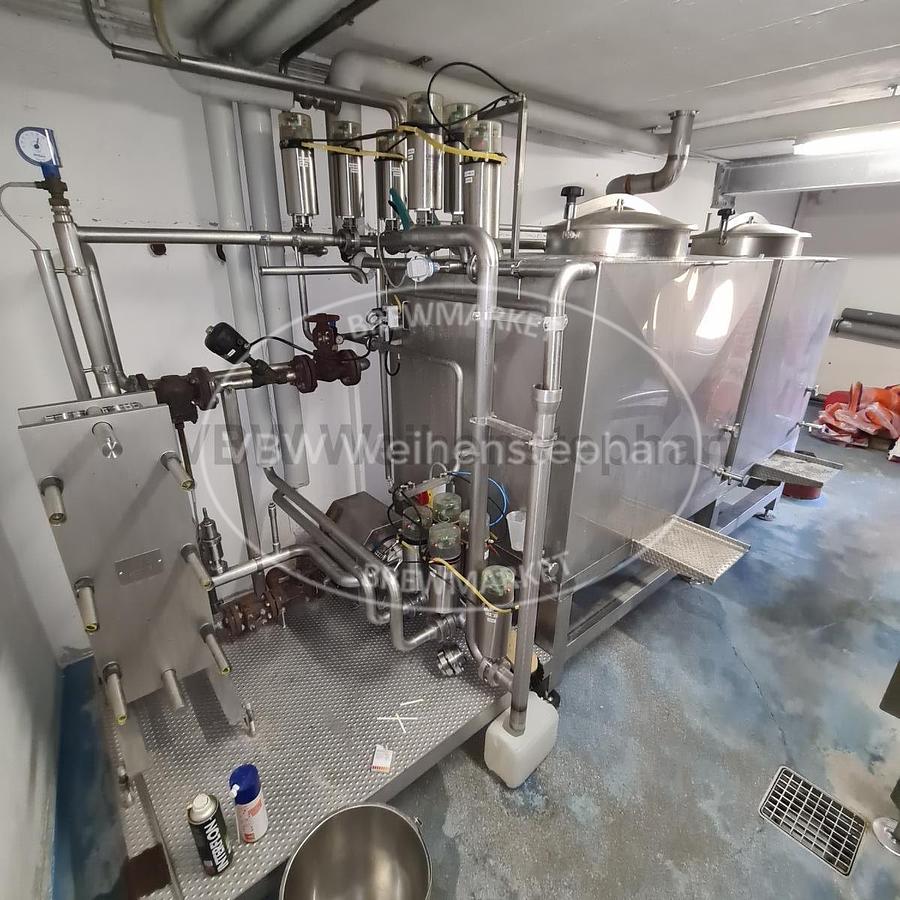

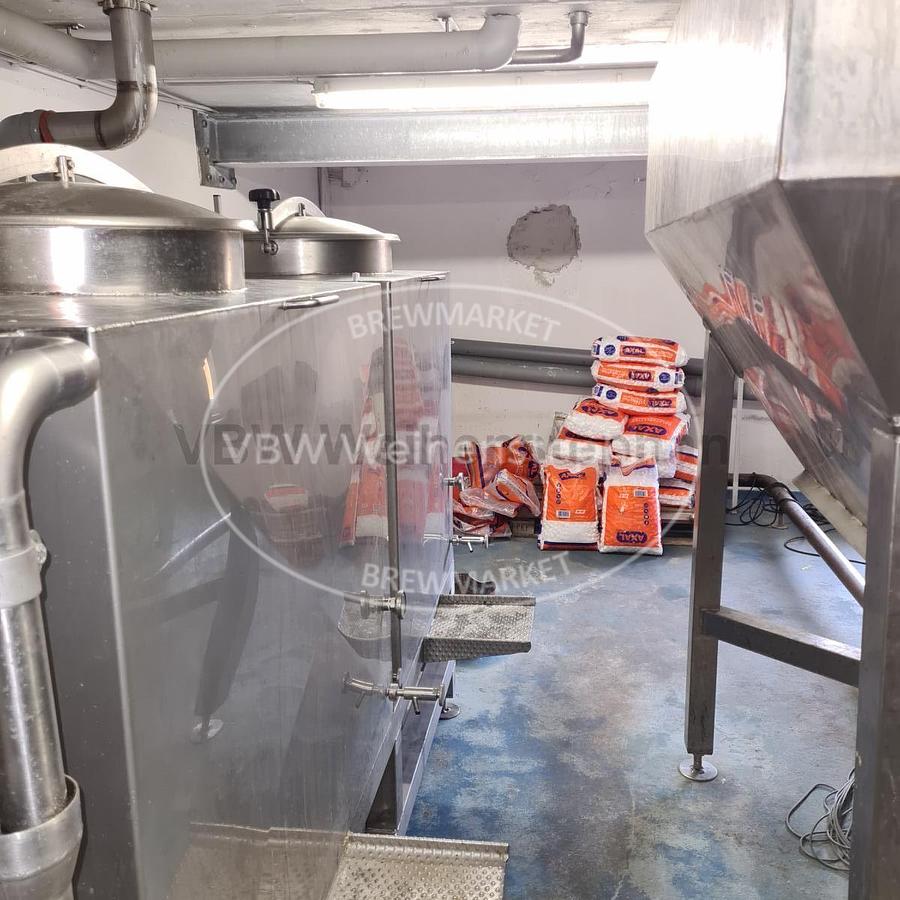

Two tanks, each with a total volume of 9 hl, equipped with spray head, immersion sleeve for thermometer, level indicator, outlet disc valve, return flow, residual emptying and hinged lid on the top of the tank.
One tank is insulated with mineral wool and can be reheated with a heating coil using low-pressure steam. The insulated tank is also equipped with thermostat control and steam valve

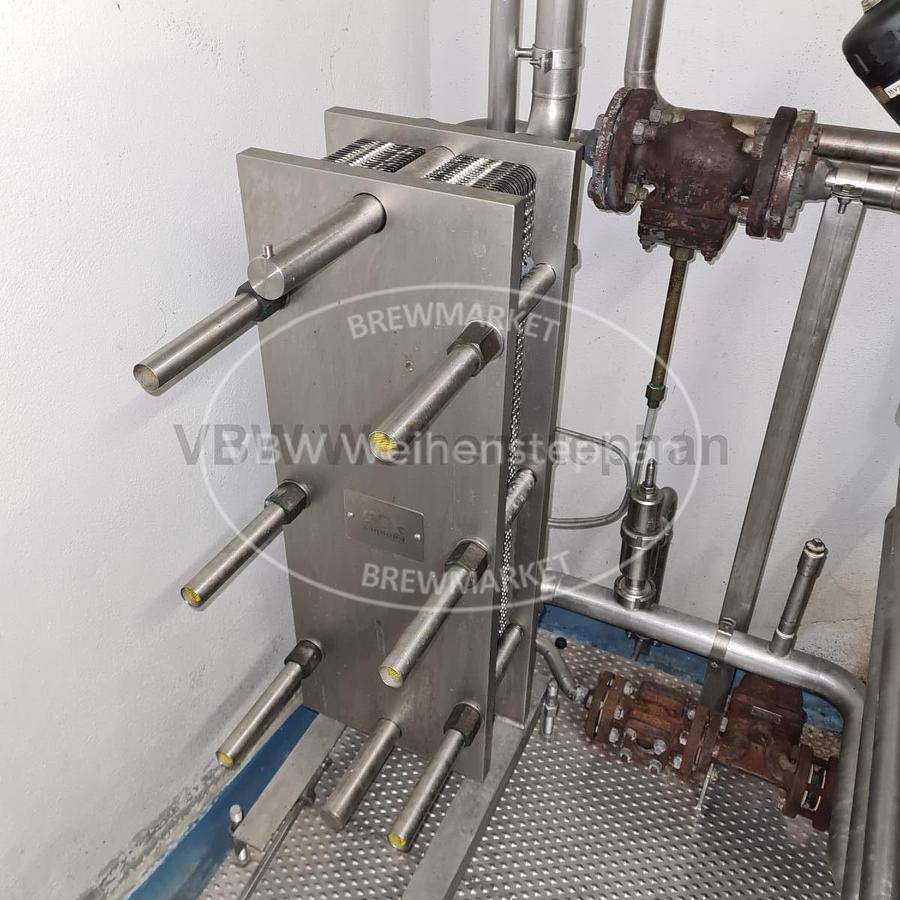

with PHE for caustic heating: GEA Varitherm VT 10 CDS C-16 (built in 1997, heats 9 hl from 20°C to 80°C in one hour)
with CIP feed pump: Hilge Euro-Hygia-Bloc I/30b (200 hl/h against 2.5 bar) with stainless steel cover and dry run protection
Specifications
Year | 1997 |
Condition | Used |
Stock Number | 208721MW |
Capacity | 9 hl per Tank |
Material thickness | 3 mm |
Insulation thickness | 100 mm |
Length | 2600 mm |
Width | 1800 mm |
Height | 2200 mm |
Material | stainless steel AISI 316 Ti, Insulation from mineral wool, insulation panelling from stainless steel AISI 304 |
Position | on a steel frame with feet |
Base construction | quadrangular tanks |
Features | PHE for caustic heating, CIP pump, One tank insulated with tightly welded panelling, pneumatic valves |
