Description
NH3 refrigeration system for cooling glycol and brewing water, consisting of the following components:
- NH3 separator brewing water (T0 = -0,5°C)
- NH3 separator glycol (t0 = -6 °C)

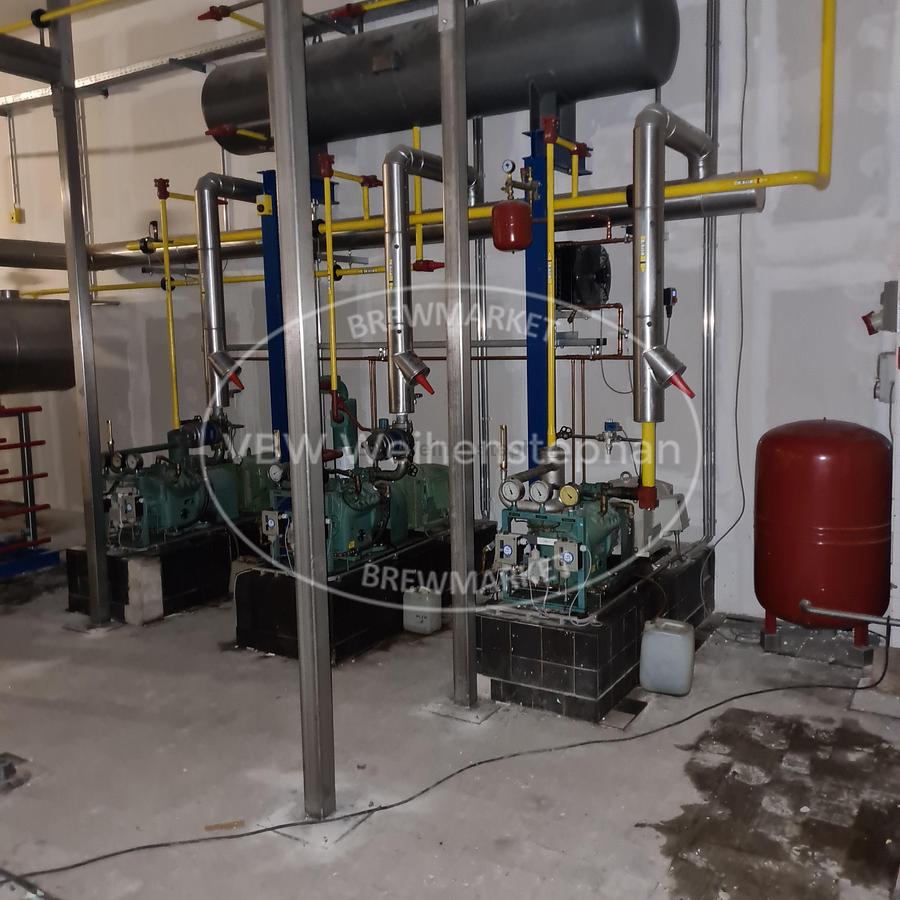

- 3 x piston compressors (Bitzer type W4GA)
- 2 x brewing water pumps
- Plate heat exchanger as brewing water cooler Q0 = 200 kW
- Evaporation condenser
- Water basin
- Glycol tank + 2 x glycol pump
- Plate heat exchanger as glycol cooler Q0 = 100 kW
- High pressure collecting vessel

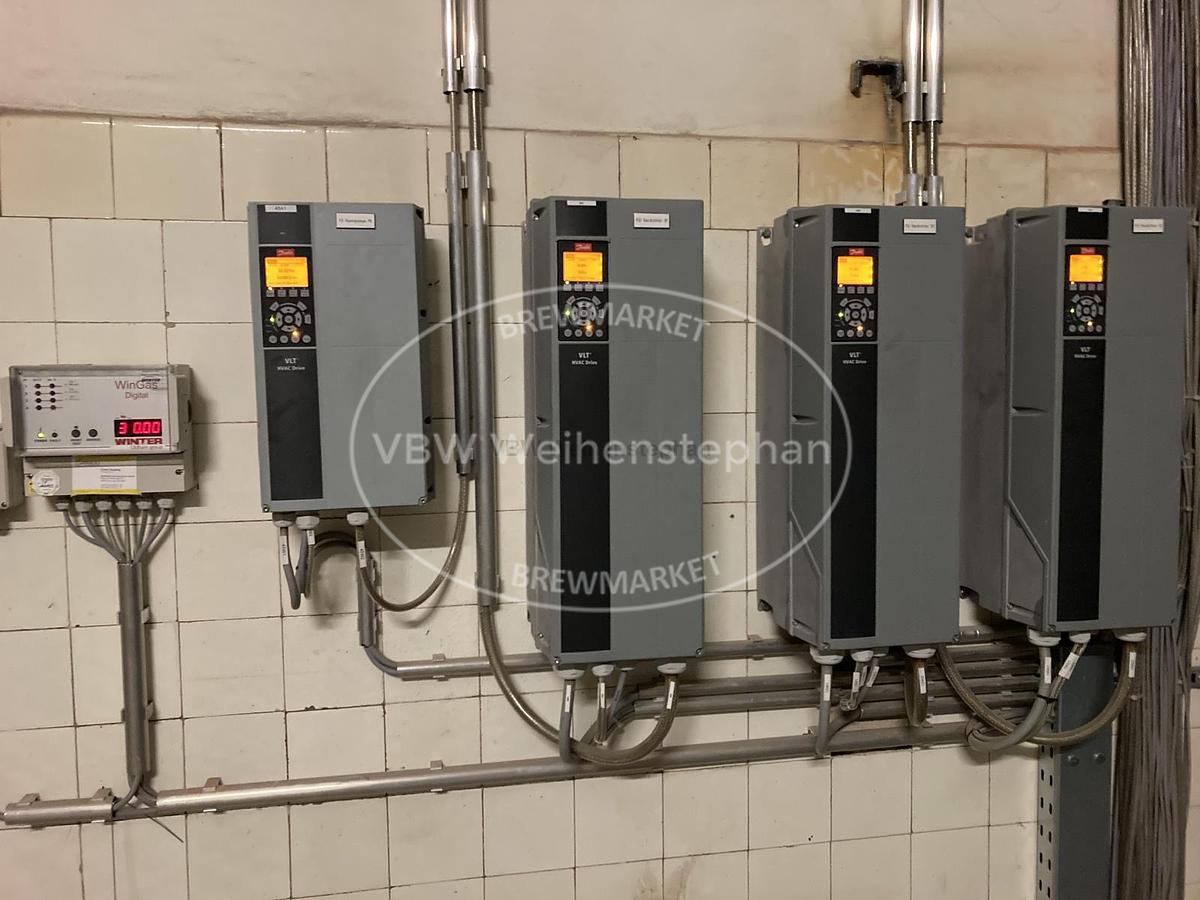

- Danfoss frequency converter type VLT HVAC
Specifications
| Manufacturer | Arctos Industriekälte |
| Year | 2013 |
| Condition | Used |
| Stock Number | 209431AH |
| Additional title | NH3 Cooling plant |
| Cooling capacity Q0 brew water | 200 kW |
| Cooling capacity Q0 glycol | 100 kW |
| Evapotation temperature t0 brew water cooling | 0 °C |
| Evaporation temperature t0 glycol cooling | -6 °C |
| Current | 185 A / 250 A |
| Features | 2 x NH3 separators (t0 = -0.5 °C; t0 = -6 °C); 3 x piston compressors; 2 x brewing water pumps; water cooler Q0 = 200 kW; evaporation condenser; water basin; high-pressure collection vessel; glycol tank + 2 x glycol pump; Glycol cooler Q0 = 100 kW; Danfoss frequency inverter type VLT HVAC |
