Description

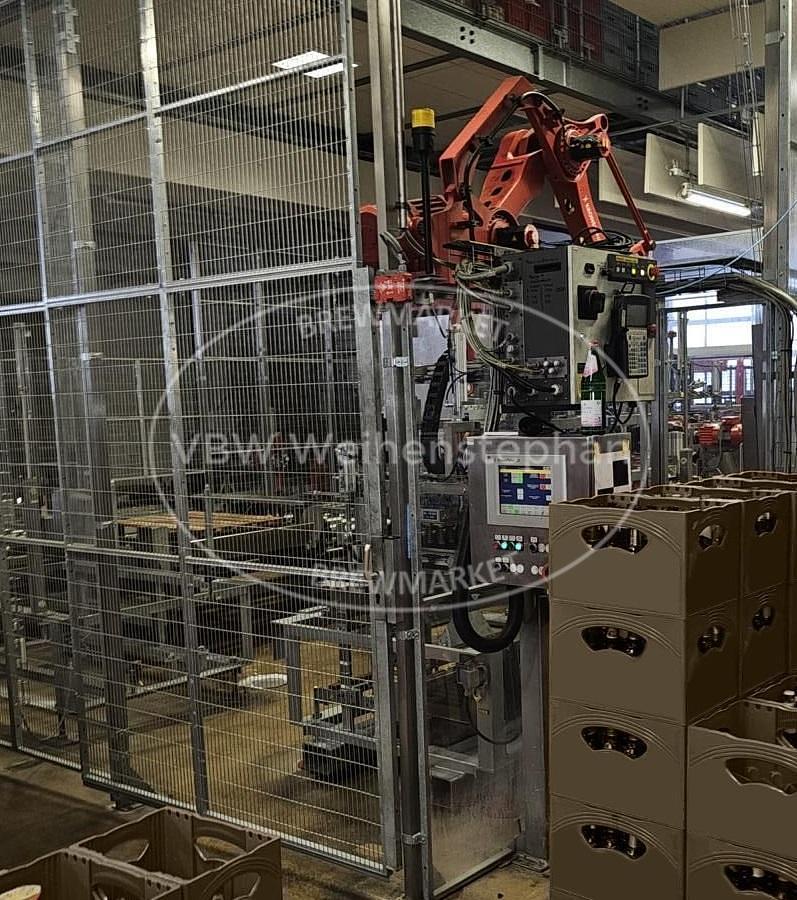

Combined packing and loading robot
Manufacturer: Krones
Model: ROBOGRIP
Output: 800 crates/h
Year of construction: 2005
Container formats:
20-bottle modular crate, 0.5-litre glass bottle
24-bottle modular crate, 0.33-litre glass bottle
Specifications
| Manufacturer | Krones |
| Year | 2005 |
| Condition | Used |
| Stock Number | 209908HG |
| Additional title | Combined packing and palletizing machine |
| Performance | 800 container/h |
| Air consumption | 4 m³/h |
| Max. load capacity | 450 kg |
| Power | 28,7 kW |
| Voltage | 230/400 V |
| Frequency | 50 Hz |
| Compressed air | 6 bar |
| Length | 2800 mm |
| Width | 2800 mm |
| Height | 3160 mm |
| Weight | 2500 kg |
| Formats | 0.5 l glass bottle, 0.33 l glass bottle |
| Running direction | right -> left |

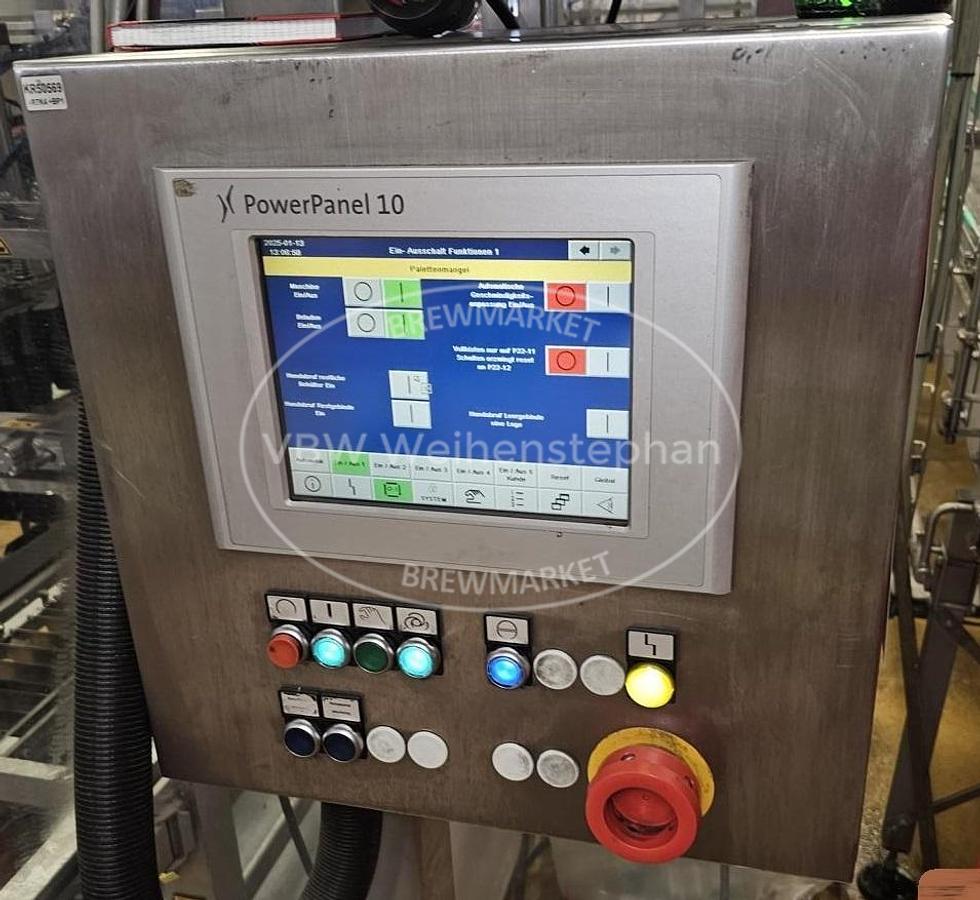

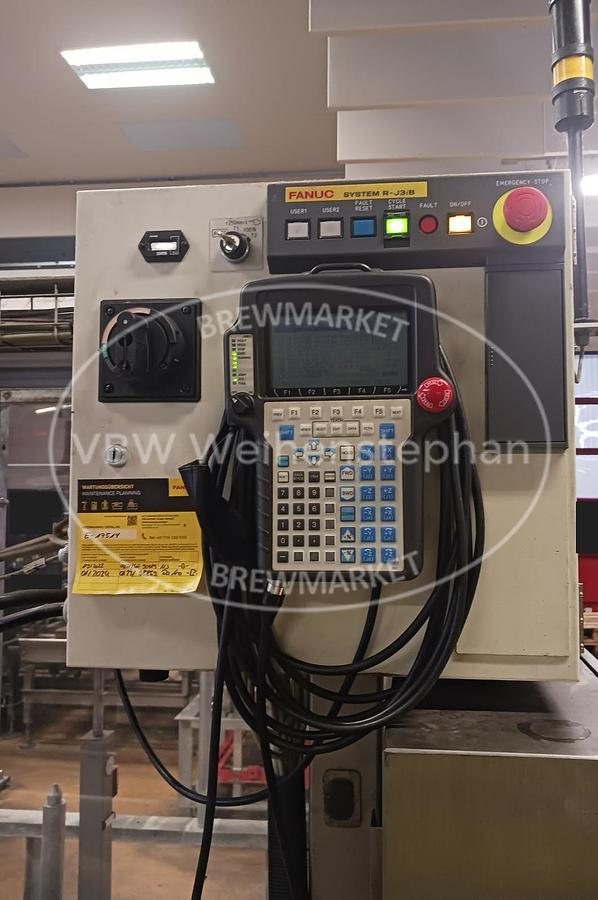

| Operation / Control | mobile control device FANUC System R, Siemens S 7-300 |
| Position | Free-standing |
| Base construction | Robot on painted machine frame |
| Features | Axis base: 2 axis arms and axis connection, 4 controlled movement axes, 2 gripper heads, pack transport, pallet transport, container transport, safety device, control cabinet, control panel, electrical and pneumatic equipment |
| Layer patterns | 1x20 for 0.5 l glass bottle, 1x24 for 0.33 l glass bottle, 8 containers/layer, 5 layers/pallet |
