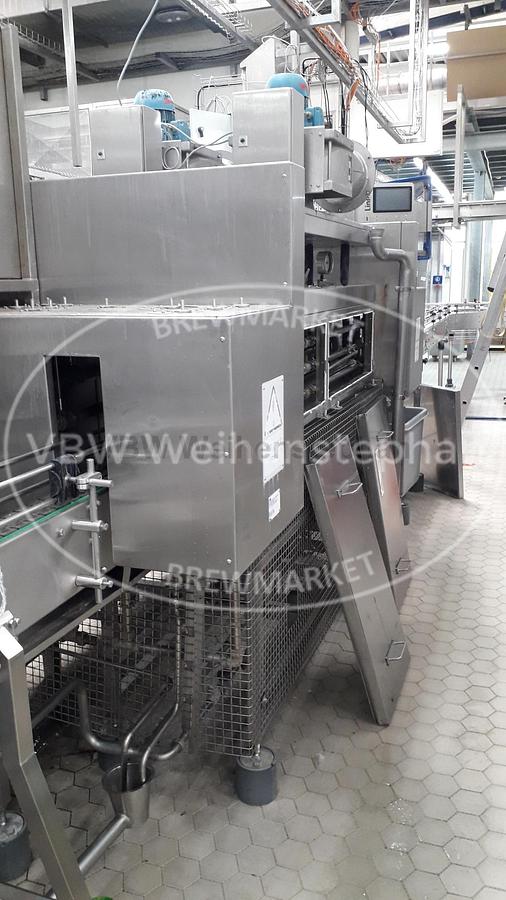

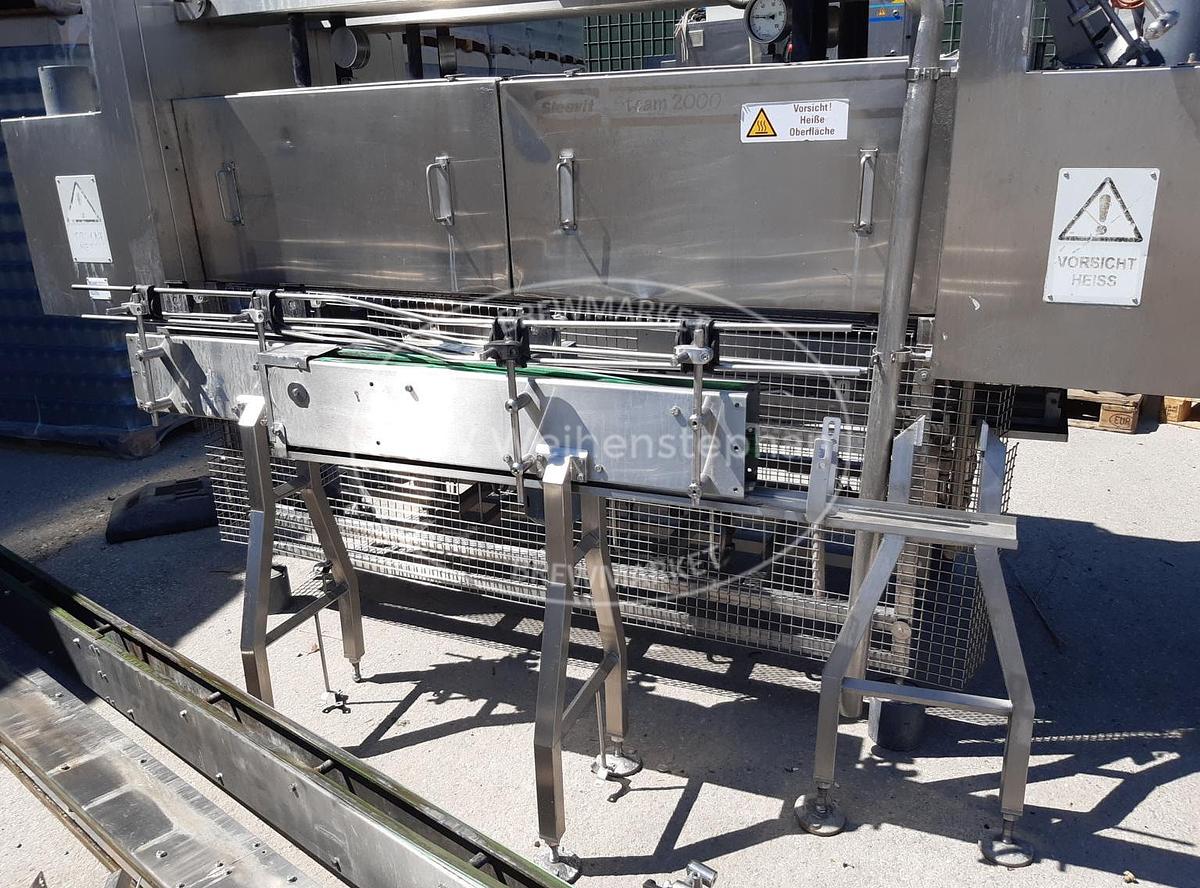

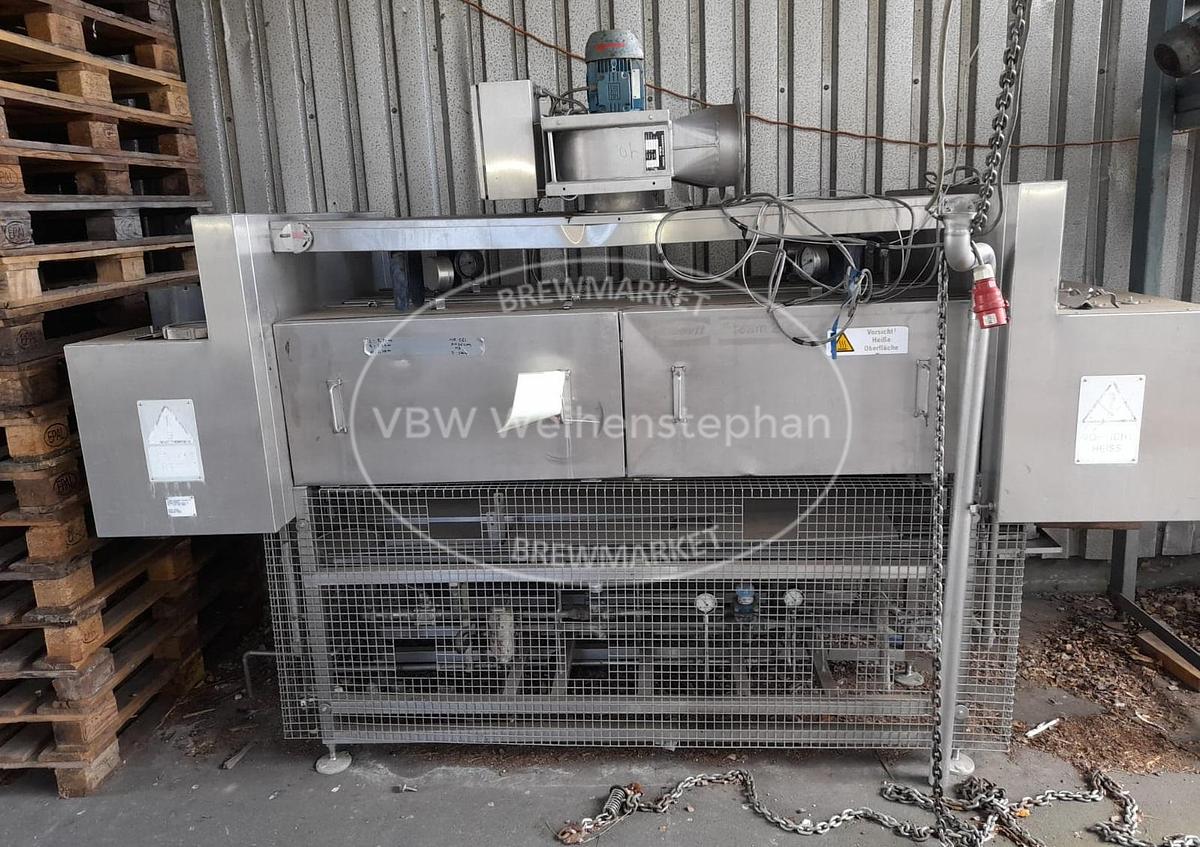

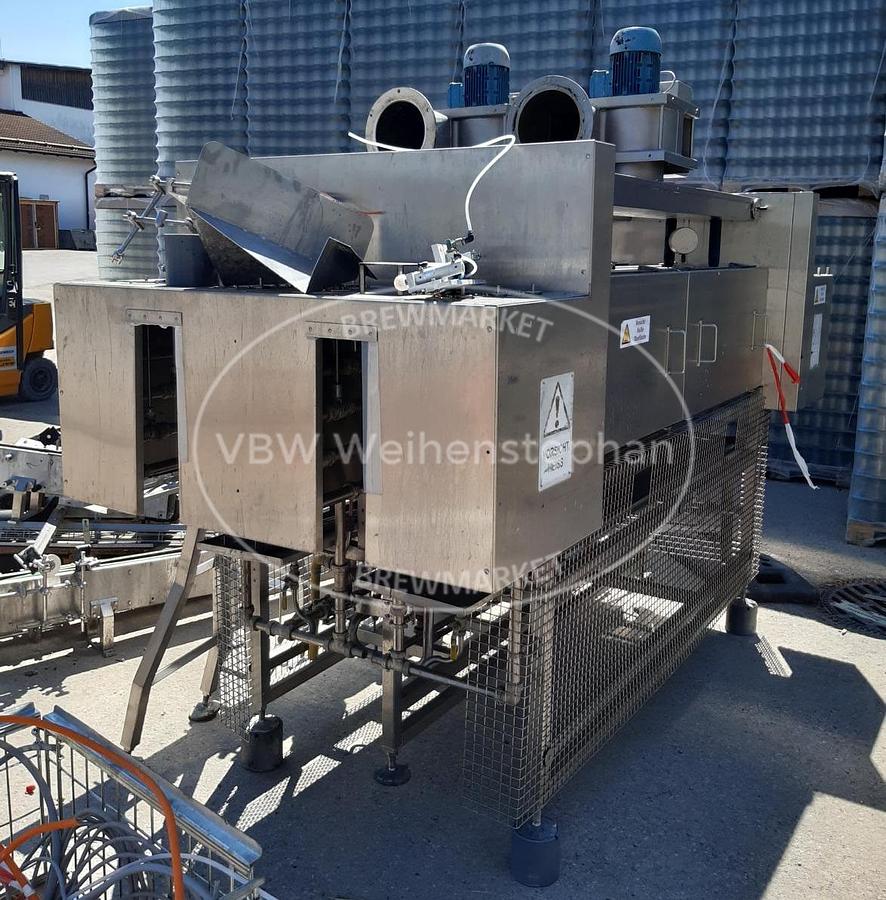

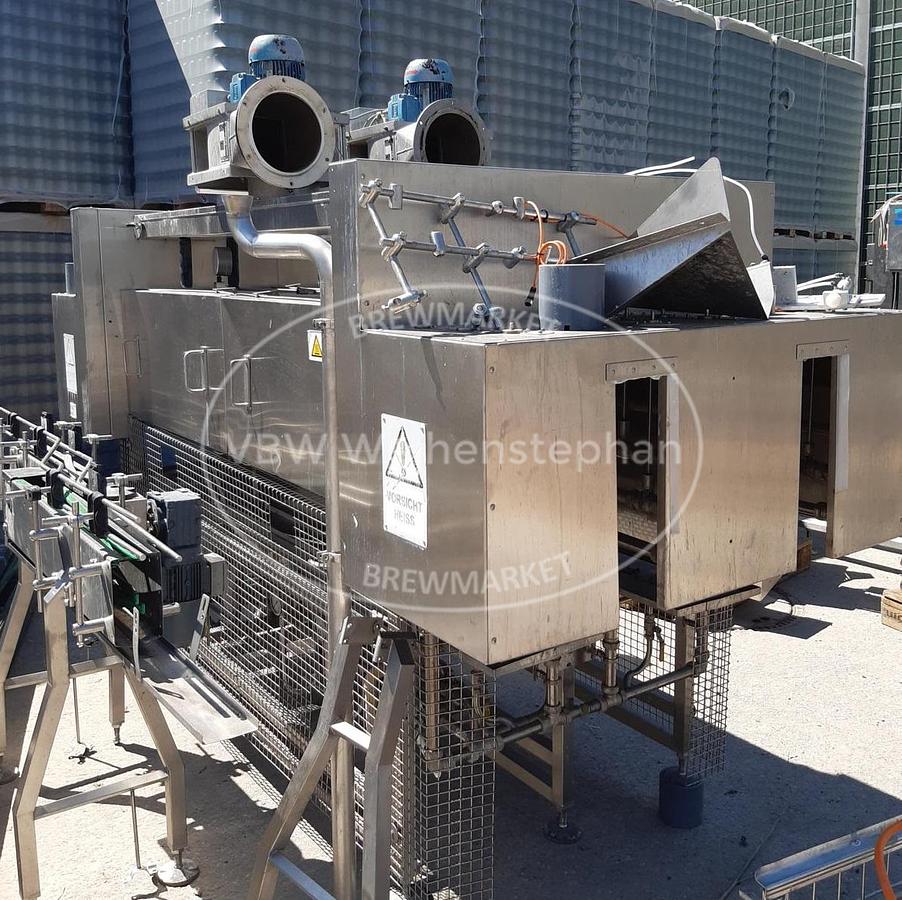

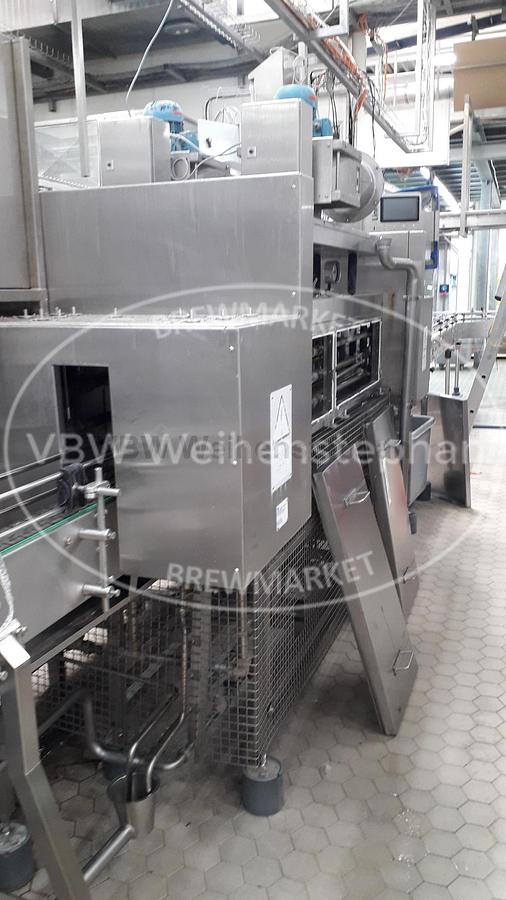

Shrink tunnel with 2 parallel conveyors
Shrink tunnel with 2 parallel conveyors
or
Call +49 (0) 8161-48333
Description
Steam tunnel for shrink tubing
Specifications
| Manufacturer | Graham & Sleevit |
| Year | 2005 |
| Condition | Used |
| Stock Number | 204770JF-1 |
| Additional title | with 2 parallel belts (incl. sleeve fit control) |
| Air volume | 700 m³/h |
| Engine speed | 900 rpm |
| Steam consumption approx. | 200 kg/h (max. 3 bar) |
| Power | 0,25 kW |
| Length | 3 m |
| Width | 1,25 m |
| Height | 2,1 m |
| Weight | 500 kg |
| Operation / Control | with control panel for each conveyor |
| Position | free standing |
| Base construction | Stainless steel frame construction on spherical fee |
| Features | Two parallel conveyors going through the unit coming from 2 sleevers, optical sleeve fit control with conveyor stop |
